Alpha Loading Systems’ ammunition loading machines are engineered to maintain uncompromising performance under the most demanding conditions. Built to arsenal-grade specifications and trusted by some of the world’s leading ammunition manufacturers, these machines are designed to handle everything from .22LR to 50BMG with consistent precision. Whether serving military contracts, commercial distribution, or competitive shooting markets, Alpha machines are built to run continuously—producing hundreds of millions of rounds per year with unwavering reliability.

Purpose-built and production-proven, Alpha offers specialized models to meet the exacting needs of modern ammunition plants. From our .22 caliber only loader to the high-volume, two-out 9mm powerhouse, every machine is tailored for efficiency. We offer a match-grade rifle caliber loader for ultimate precision, a versatile multi-caliber unit covering everything from .25ACP to .338 Lapua, and a dedicated .50 caliber workhorse. Each system is engineered to maximize throughput and ensure smooth, consistent operation around the clock.

Alpha machines are designed not only to integrate seamlessly into your production line but to enhance it. With a compact footprint under 60"L x 50"W, flexible power configurations for both U.S. and international requirements, and output capacities of up to 100 parts per minute in pistol calibers, these systems deliver exceptional productivity in a space-efficient package. When high-volume, high-precision performance is critical, Alpha provides the machines that perform, endure, and deliver.

Alpha L-250

Alpha L-360

This 9mm-only loader is a powerful, dual-output machine capable of producing up to 220 parts per minute, delivering reliable performance shift after shift.

Alpha L-550

Our magnum loader designed for 50 caliber 12.7x99 or 12.7x108 cartridge assembly can load approximately 45 parts per minute and maintain strict tolerances.

Our most versatile loader, the L-250 is designed for high-output production of small and large pistol and rifle calibers from .25ACP-338 LAP.

Alpha L-260

Alpha L-150 R

Built for precision, the L-260 is a rifle only, match grade loader, designed with comprehensive quality control checks.

The Alpha L-150 R is a dedicated .22 caliber dual output loading machine, capable of producing approximately 160 parts per minute.

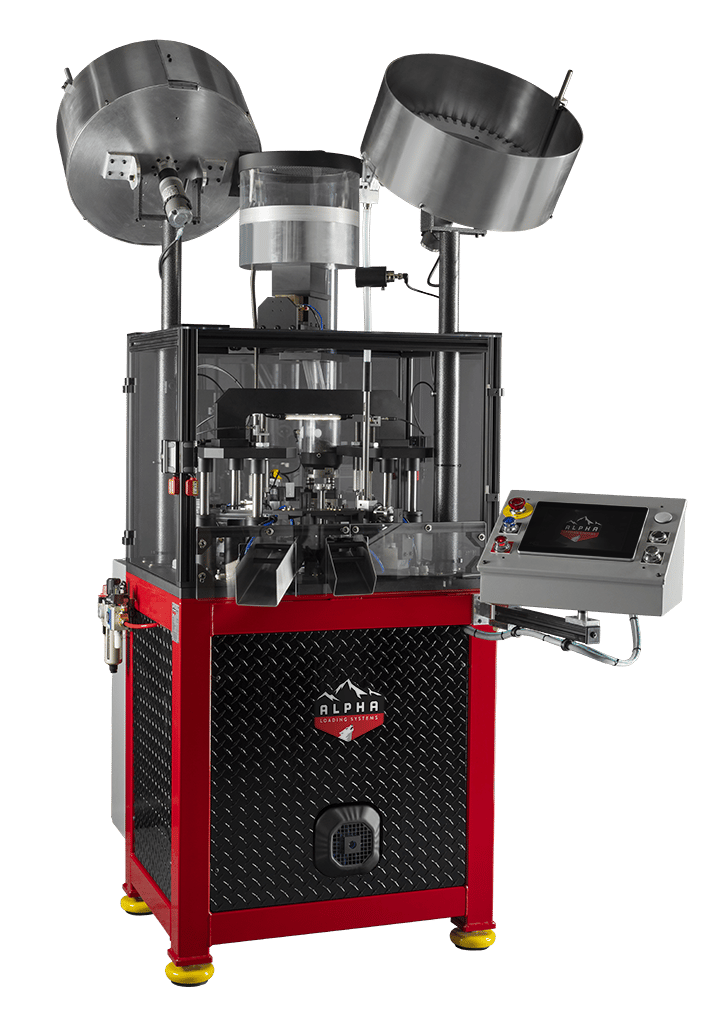

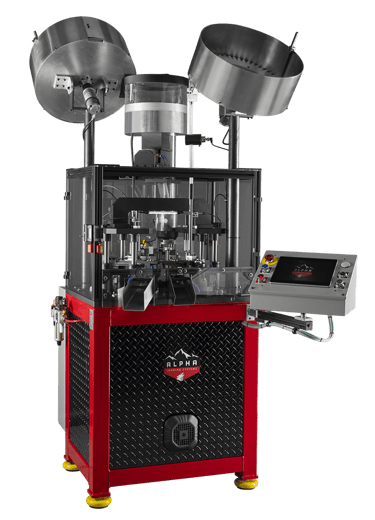

Alpha L-250

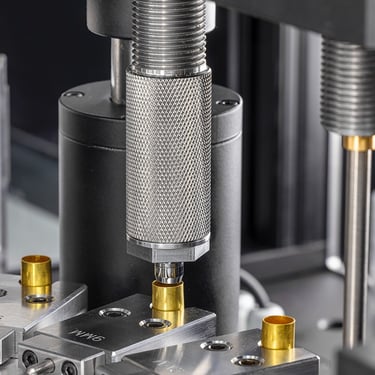

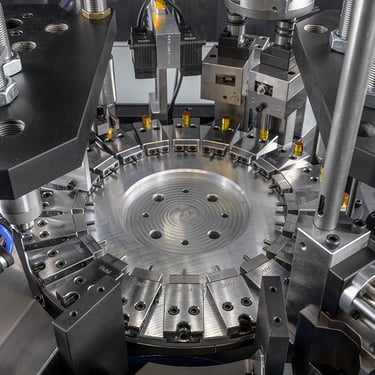

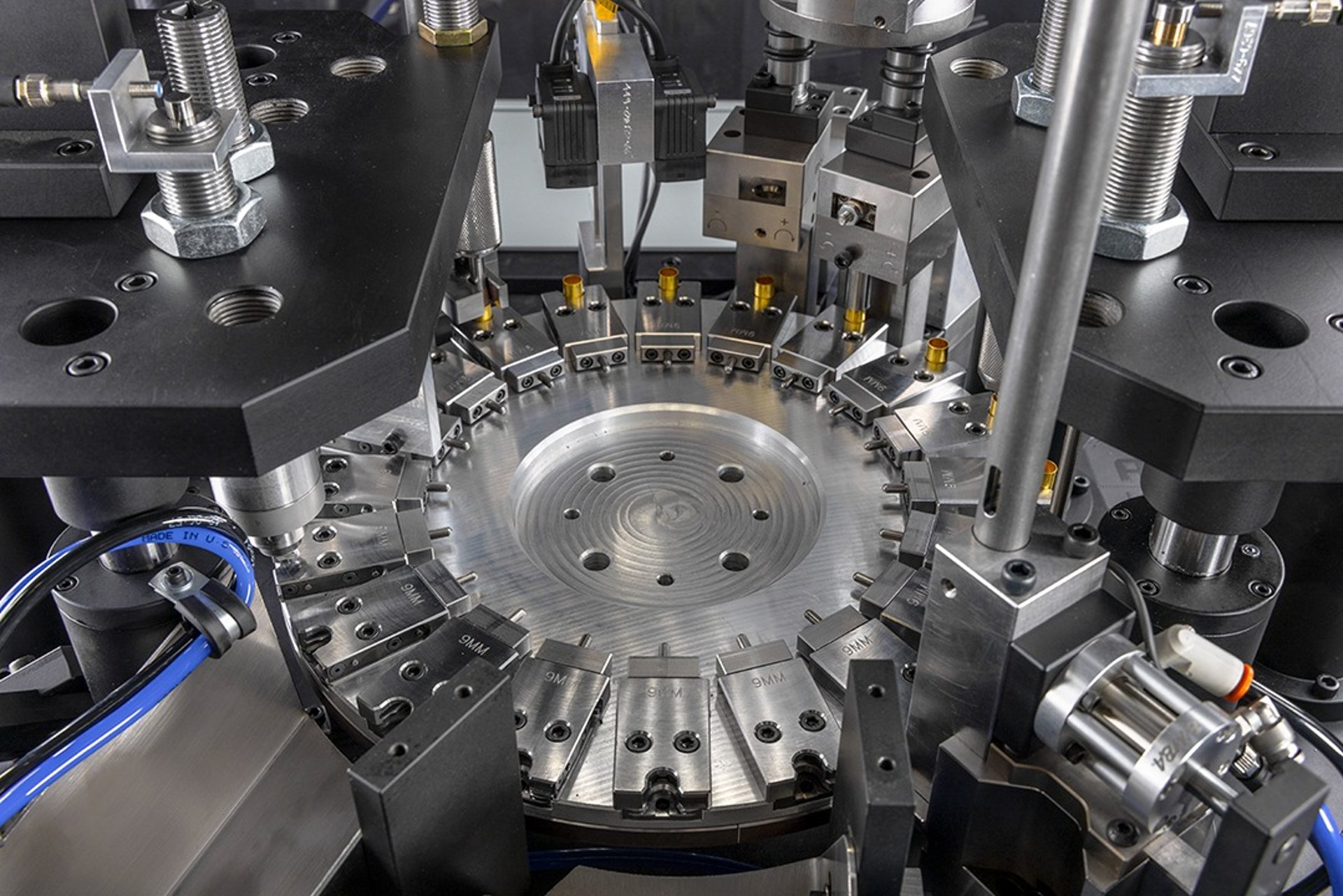

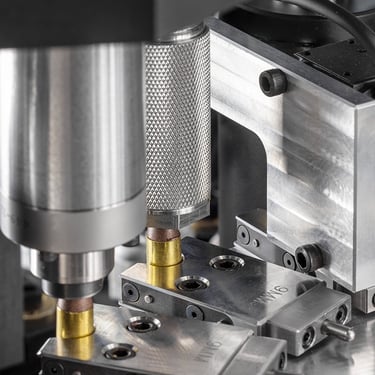

The Alpha L-250 is the foundation of our loading machine lineup—versatile, compact, and engineered for peak performance under demanding conditions. Capable of loading both pistol and rifle calibers from .25ACP to .338 Lapua, the L-250 supports dozens of proven caliber changeovers with precision-machined tooling. With more than two decades of continuous production, it has earned a global reputation as a true workhorse—trusted by leading ammunition manufacturers to deliver millions of high-quality cartridges with speed and consistency.

Built-in quality control systems ensure every round meets the highest standards. The L-250 integrates automatic reject mechanisms to remove defective cartridges, laser-based powder checks, and laser overall-length verification—all designed to maintain precision, reliability, and safety in every cycle. Engineered for nonstop operation, it provides dependable performance round after round, shift after shift.

Operator safety is integral to the L-250’s design. Each machine is enclosed with blast-resistant polycarbonate doors and equipped with interlocking safety switches, ensuring secure operation during live production. For facilities that demand reliability, versatility, and precision in a single proven platform, the Alpha L-250 remains unmatched.

Specifications

Compatible Calibers

.25ACP - .338 Lapua

Footprint

36"L x 32"W x 94"H

Power Requirements

120V/15A or 230V/50HZ single phase

Suggested Working Area

10'L x 10'W x 10'H

The Global Benchmark in Ammunition Loading Performance

Alpha L-360

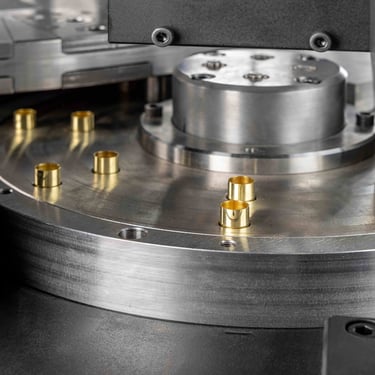

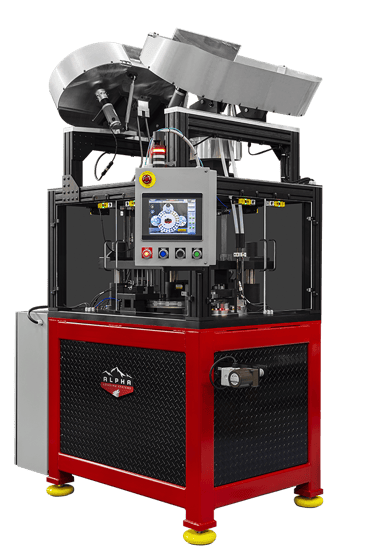

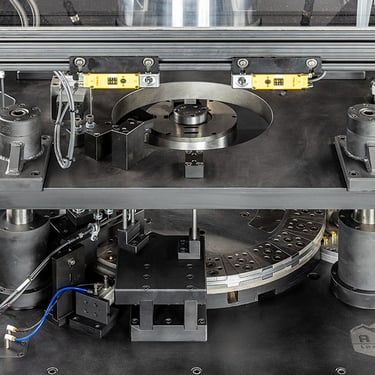

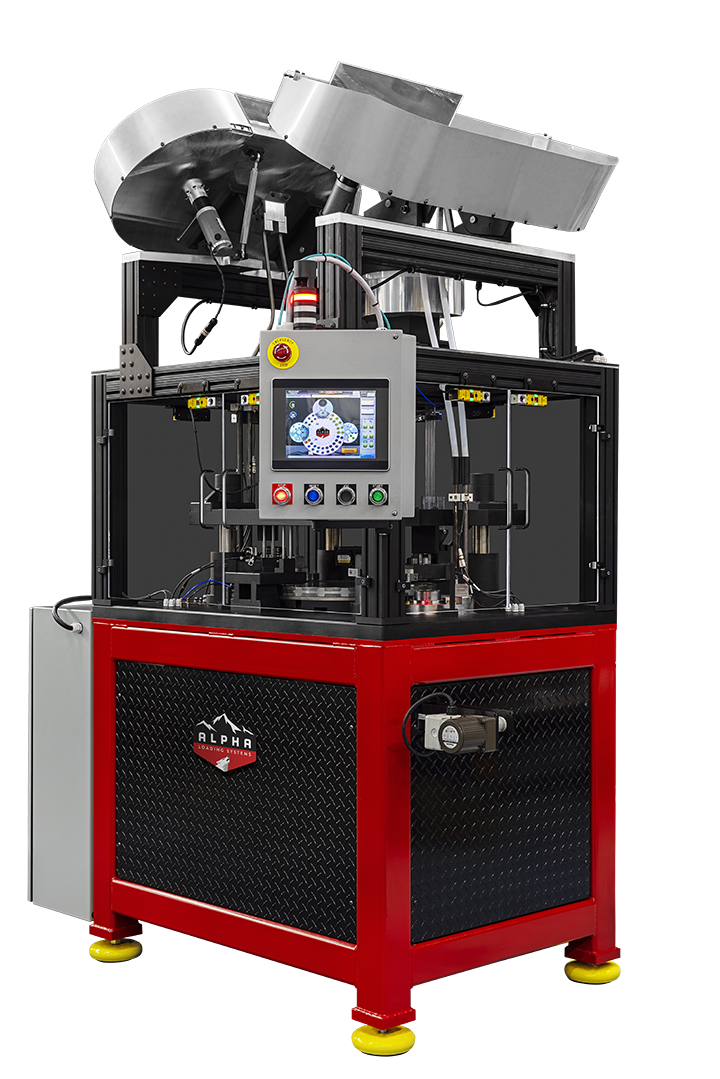

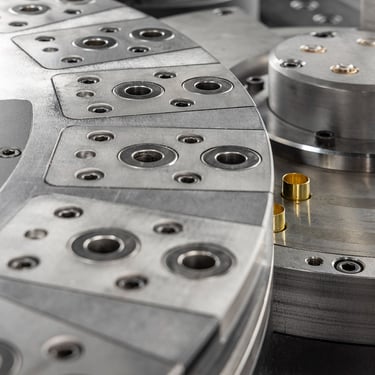

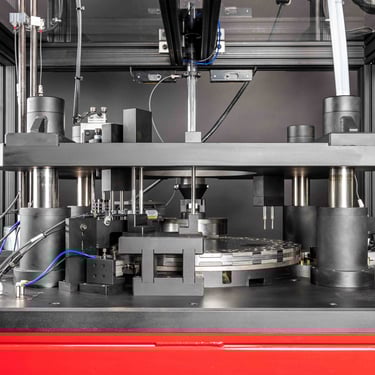

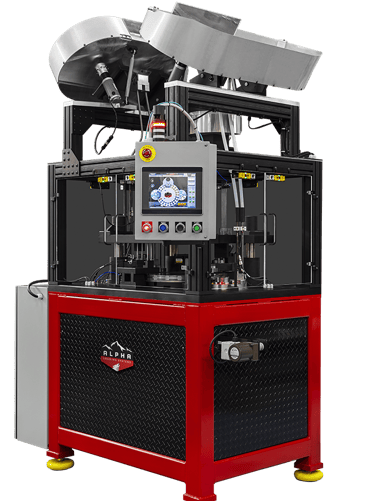

The Alpha L-360 is a high-volume, 9mm dedicated loading machine. Featuring a dual-output design and throughput levels reaching up to 220 finished cartridges per minute, the L-360 is engineered to keep pace with the most demanding manufacturing schedules. Alpha's L-360 utilizes a 24-station rotary design with dual, fully encased inserts and 8-position planetary indexers. Synchronized operation with three planetary rotors ensures fast, smooth, and consistent feeding of cases, powder/propellant, and projectiles. The result is consistent, top-quality ammunition.

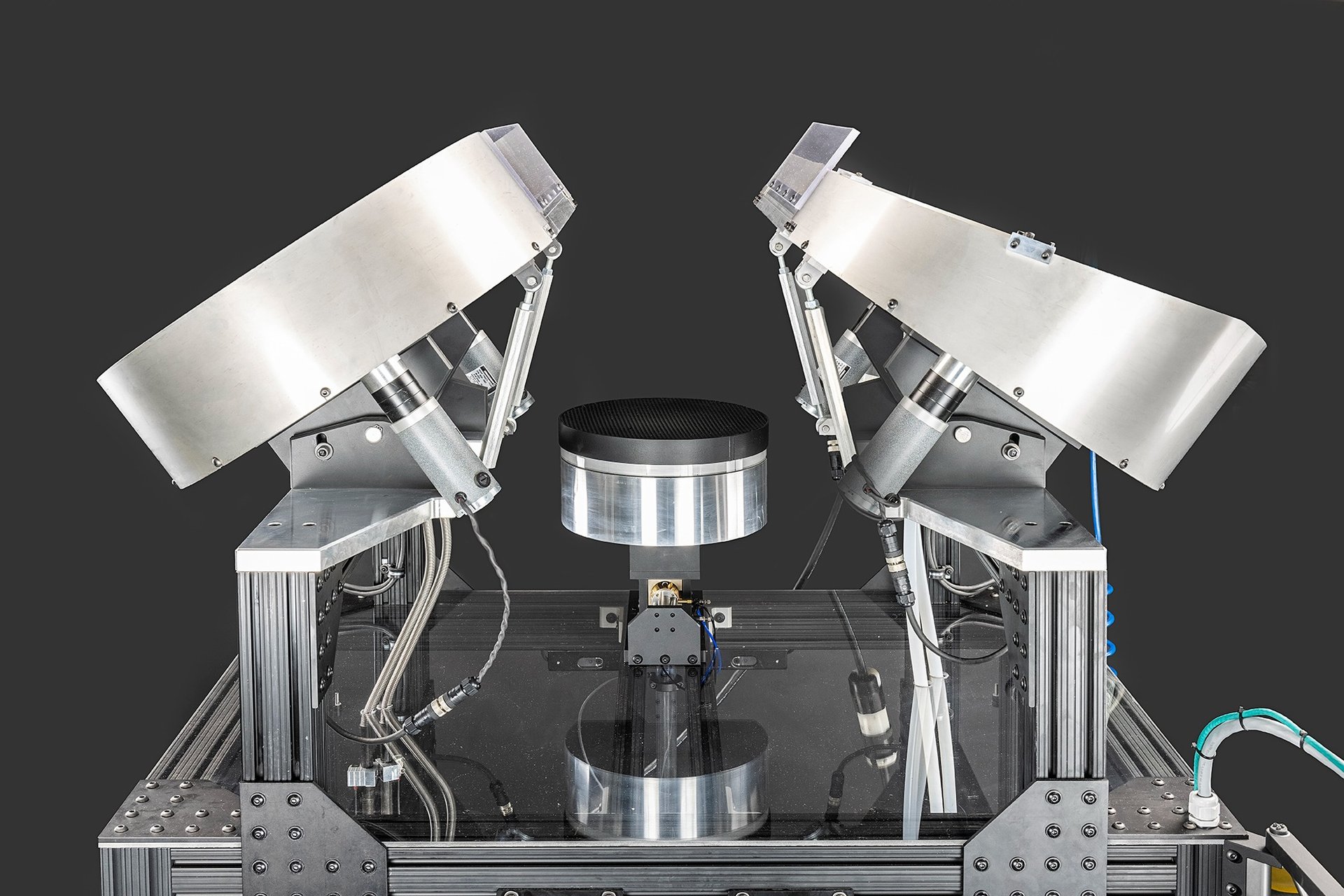

Advanced imaging sensors and dual laser systems monitor the case and bullet feeds in real time. Additional built-in quality control checks instantly detect defects or powder inconsistencies. Combined with an automatic reject system that cleanly segregates non-conforming rounds, the L-360 ensures every finished cartridge meets exacting standards. Its vertical feeder and large powder reservoir optimize both space and efficiency, supporting uninterrupted operation. Purpose-built for high-volume 9mm production, the Alpha L-360 is the machine you rely on when it’s time to deliver.

The Ultimate Dual-Output 9mm Loader

Compatible Calibers

9mm

Power Requirements

120V/208WYE or 380V/50HZ 3 phase

Footprint

48"L x 36"W x 105"H

Suggested Working Area

10'L x 10'W x 10'H

Specifications

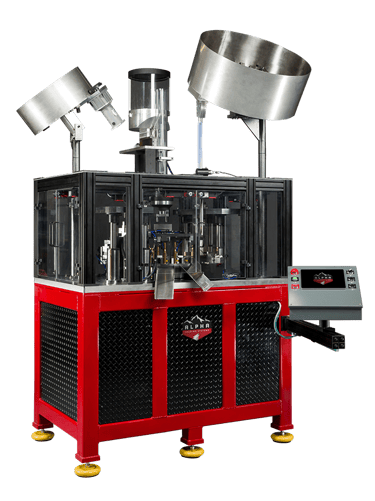

Alpha L-550

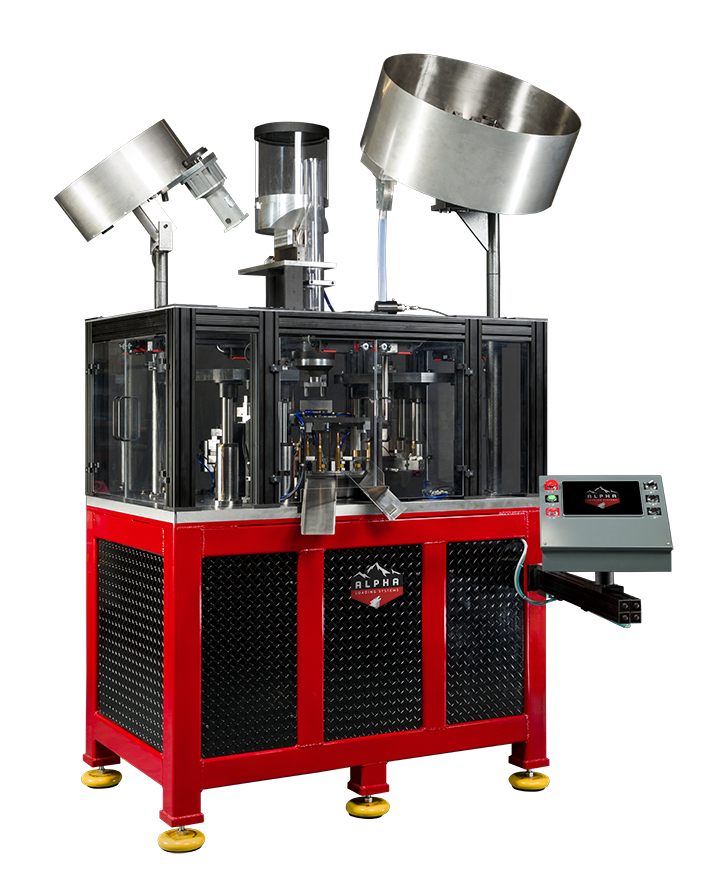

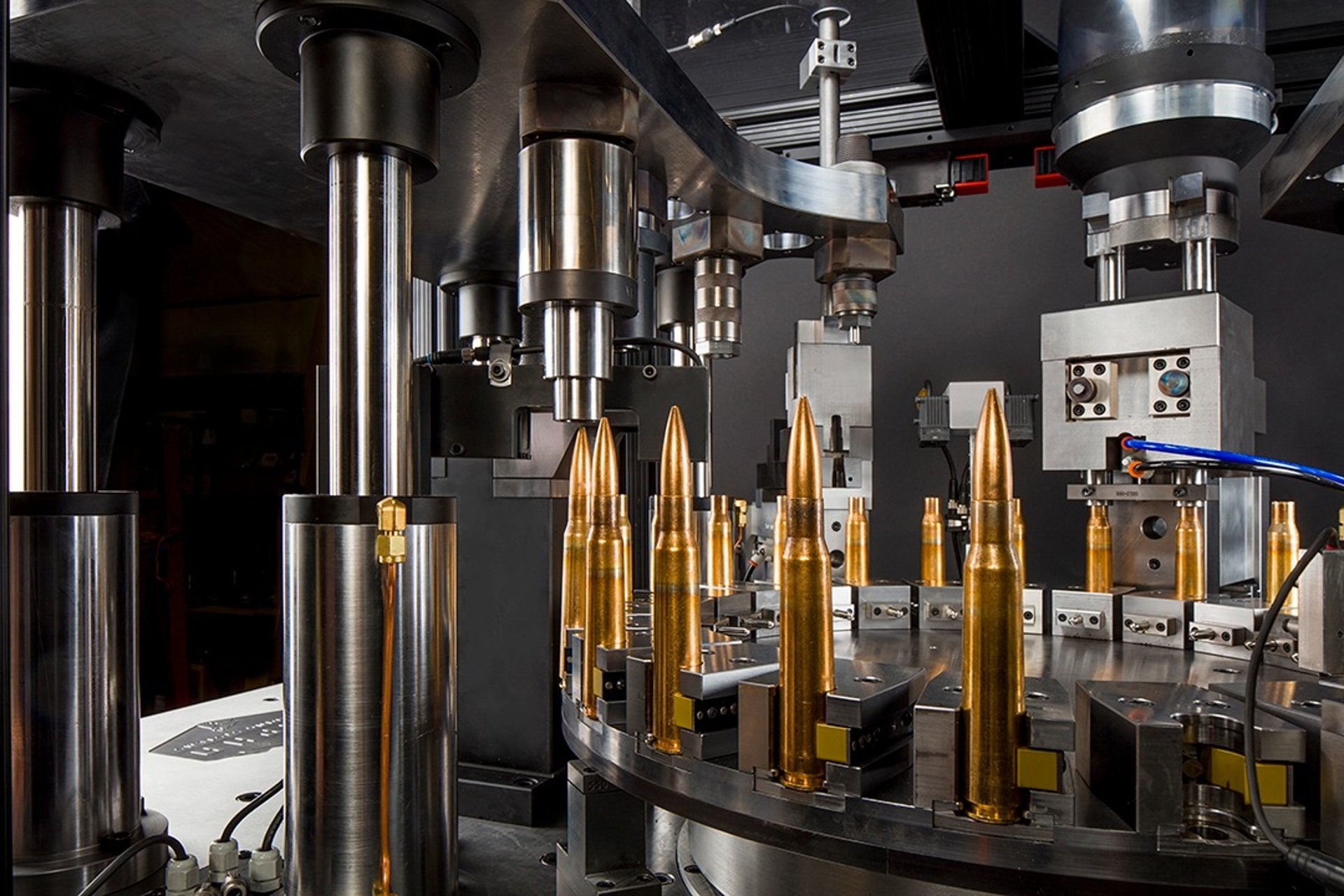

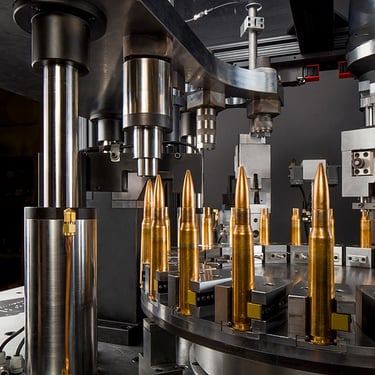

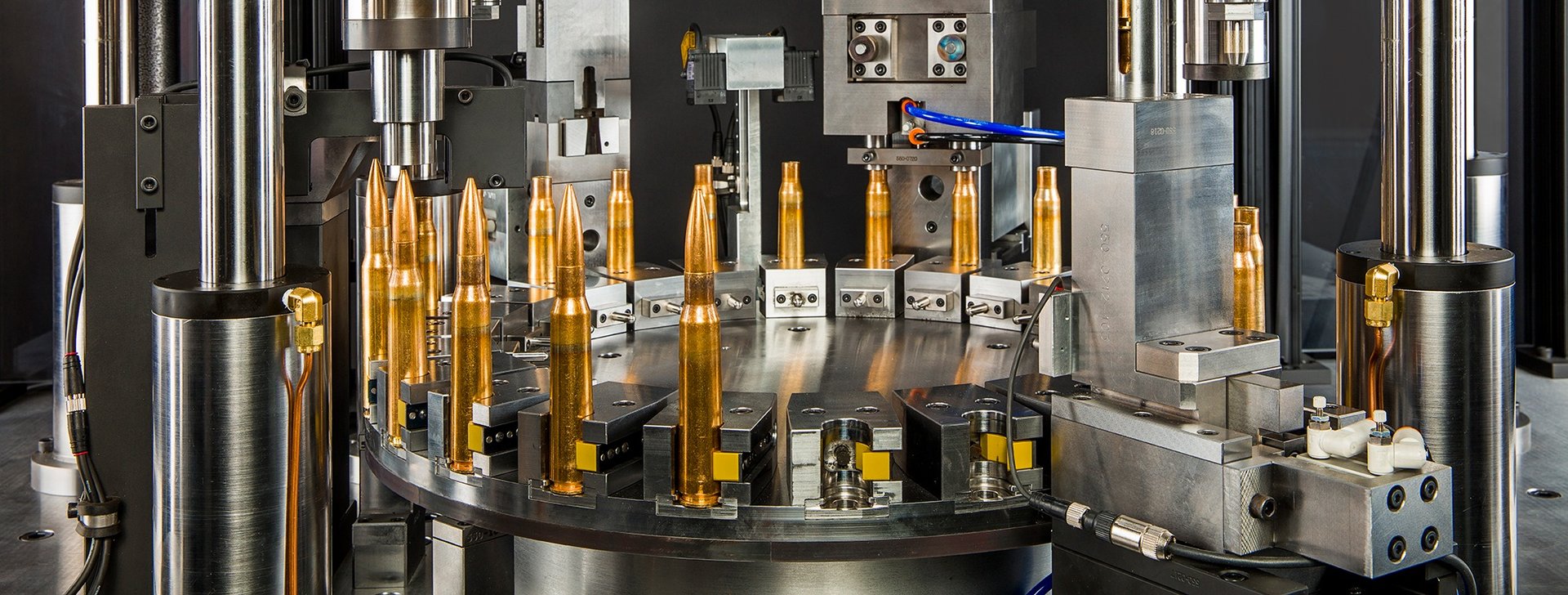

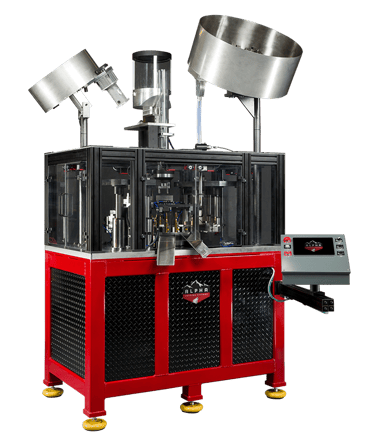

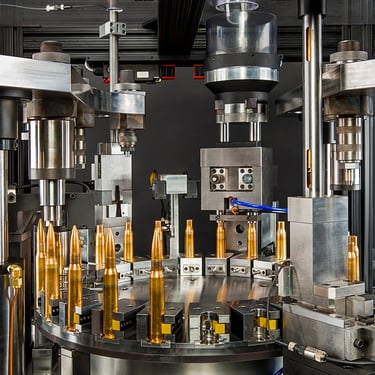

The Alpha L-550 is our 50 caliber ammunition loading machine, designed to handle both 12.7x99 (.50 BMG) and 12.7x108 cartridges with unmatched precision and efficiency. This advanced machine achieves a remarkable output of 45-50 rounds per minute. Despite its high performance, the L-550 boasts a compact footprint.

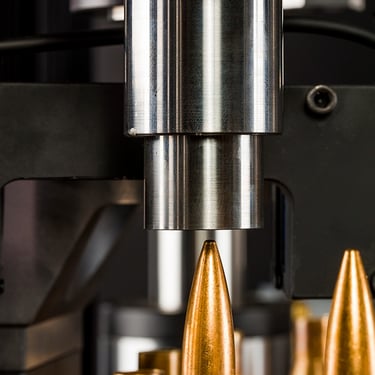

Safety and reliability are central to the L-550’s design. It features a fully encased safety enclosure, stop switch doors, intrinsically safe electronics, and an advanced powder delivery system that ensures both safety and efficiency. Built on a 24-station rotary platform, the machine includes tandem powder drops, double laser powder checks, dual bullet seating dies for unmatched precision, laser OAL measurement, crimping, collet crimping, and a partial case gauge die with auto-reject functionality—all operating without interrupting production.

The Alpha L-550 redefines production efficiency by incorporating advanced technology for energy, space, and labor optimization without compromising machine longevity or output quality.

The 50 Caliber Magnum Loader

Specifications

Compatible Calibers

12.7x99 & 12.7x108

Power Requirements

120V/208WYE or 380V/50HZ 3 phase

Footprint

60"L x 50"W x 108"H

Suggested Working Area

10'L x 12'W x 12'H

Alpha L-260

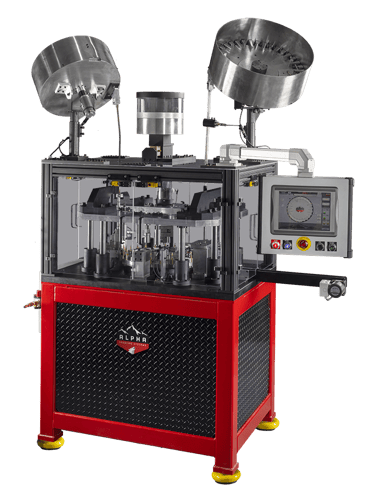

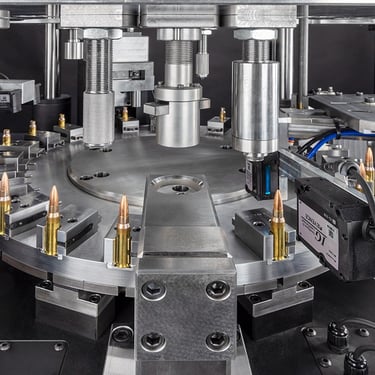

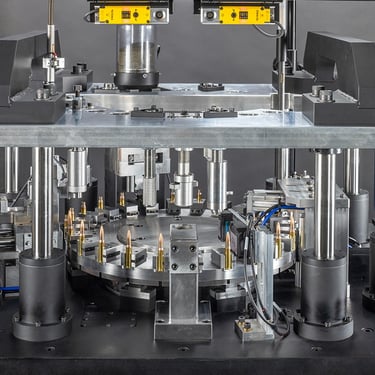

The Alpha L-260 is a match-grade rifle loading machine engineered for precision-focused ammunition production. Designed exclusively for rifle calibers, the L-260 delivers exceptional consistency with every round, making it the ideal solution for applications where tight tolerances and repeatable accuracy are non-negotiable. Its rotary motion platform and precision-machined tooling provide a smooth, reliable operation, while specialized case inserts offer superior case stability, reduce powder spillage, and improve bullet alignment throughout the loading cycle.

To support its precision-built design, the L-260 incorporates dual powder feed stations to ensure accurate and consistent powder delivery. A laser micrometer, paired with an optional datum length check station, allows operators to verify overall length both physically and electronically. The bullet seating process is carefully refined through a spaced seating station and a secondary precision seating die that adjusts to each case individually, achieving highly consistent overall length (OAL) across production runs. Built for serious rifle loading operations, the L-260 is the machine you count on when precision, accuracy, and optimal performance is critical.

Rifle Only Match Grade Loader

Specifications

Compatible Calibers

Rifle .223 - 338 Lapua

Footprint

59"L x 36"W x 103"H

Power Requirements

120V/208WYE or 380V/50HZ 3 phase

Suggested Working Area

10'L x 10'W x 10'H

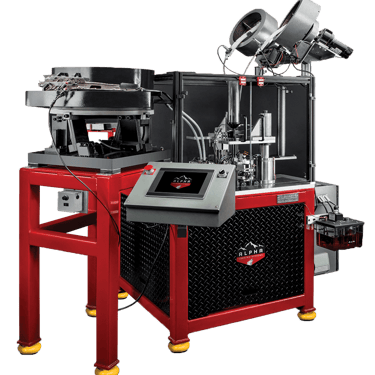

Alpha L-150r

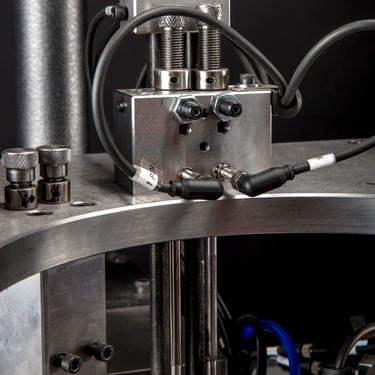

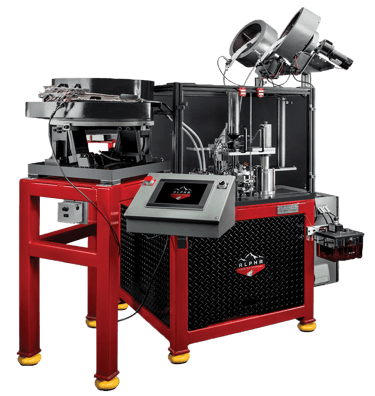

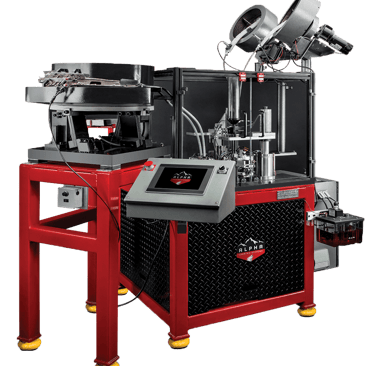

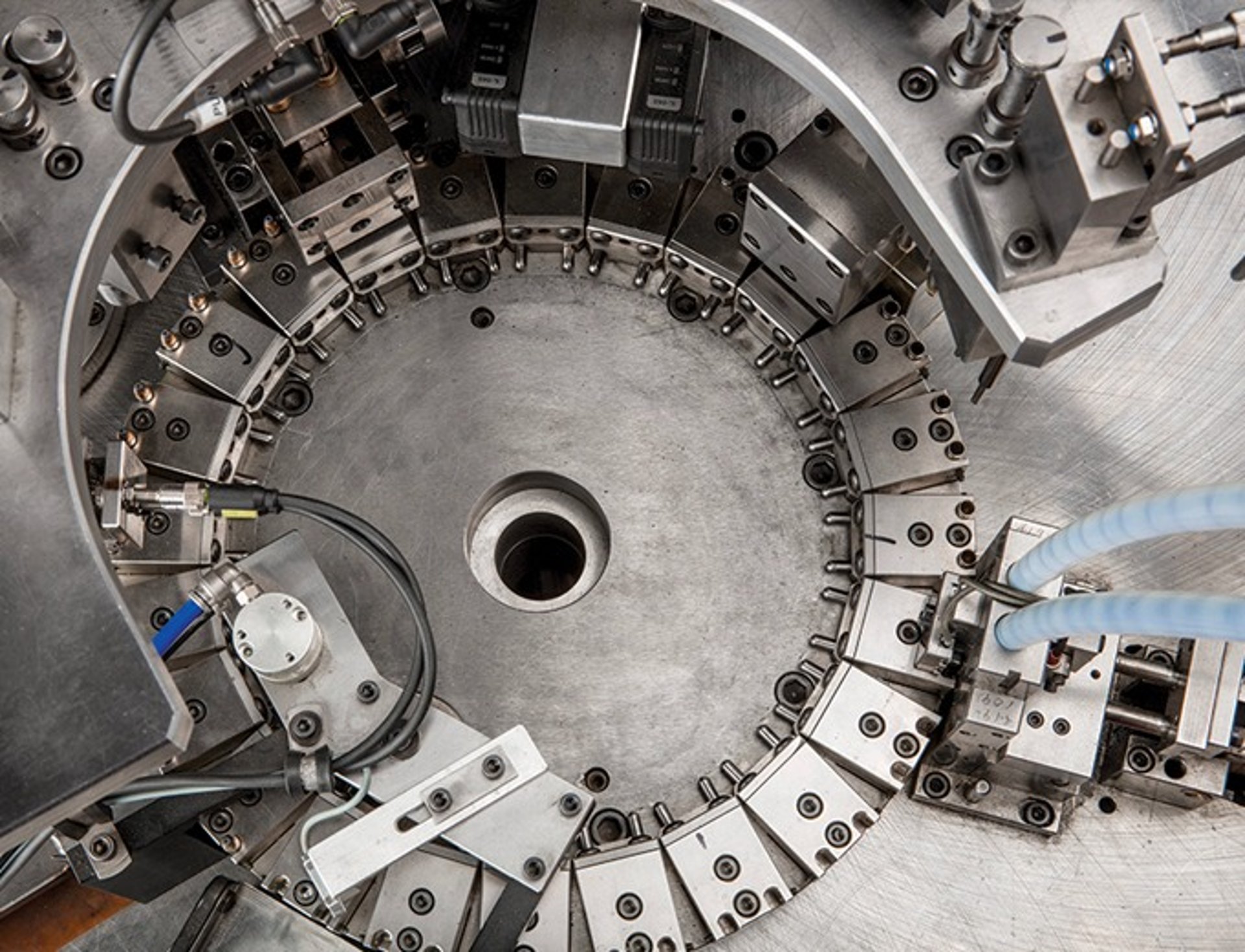

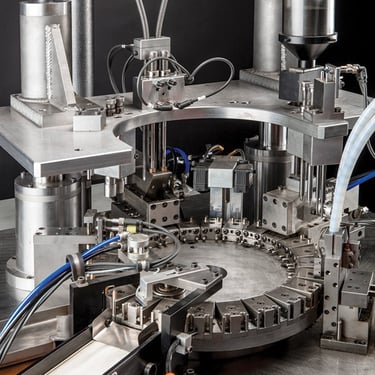

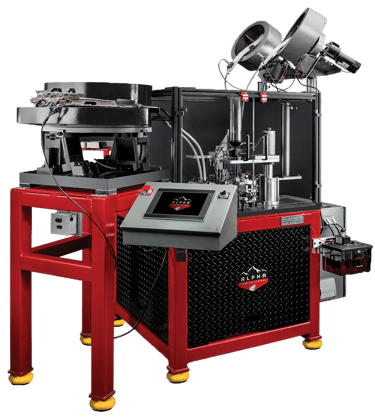

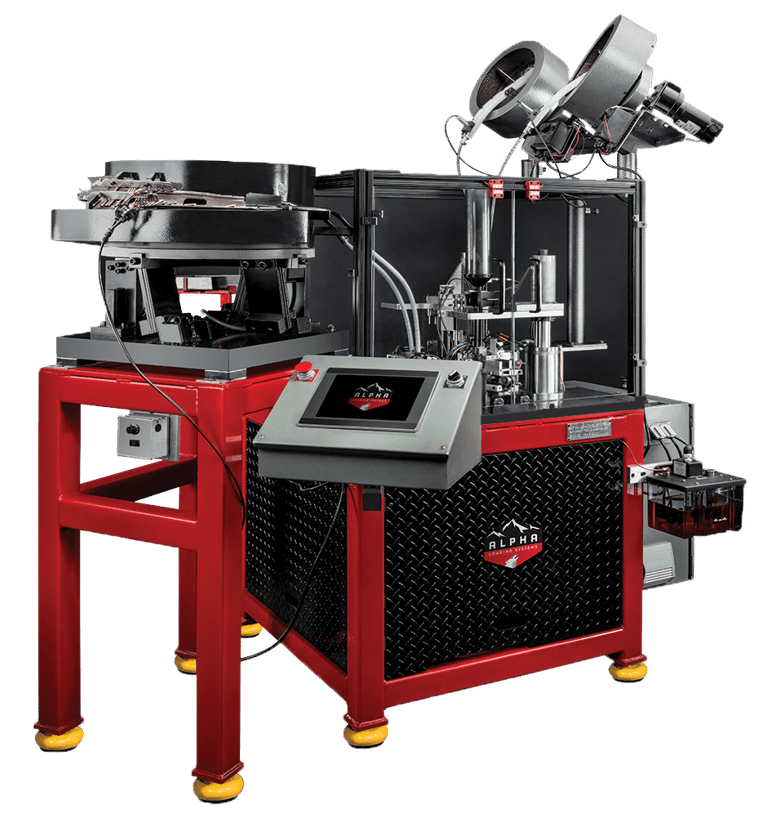

The Alpha L-150 R is a dedicated 2-out rimfire loading machine engineered for high-efficiency production of .22LR or .22 WMR cartridges. Designed with a user-friendly touchscreen interface, the L-150 R gives operators full control over the loading process with intuitive functionality and real-time monitoring. Its robust mechanical drive system, powered by a reliable 2-post ram, ensures consistent performance and smooth operation, shift after shift. A fully integrated progression system includes case feed, debris check, bell mouth/size, stationary powder drops, and bullet seating—all precisely timed for maximum efficiency and accuracy.

What sets the L-150 R apart is its commitment to precision and durability. Dual powder checks using a triangular laser system ensure proper charge in every round, while the laser micrometer provides real-time OAL (overall length) measurements to maintain strict tolerances. The automatic reject feature eliminates non-conforming rounds, and a partial case gauge with auto-eject streamlines final handling. Built with hardened tool steel in all critical components—including the case inserts, dies, crimp station, and bullet seat—the L-150 R delivers long-lasting performance in demanding production environments. It's a compact, powerful, and precise solution for any high-volume rimfire operation.

The 2-Out Rimfire Loader

Compatible Calibers

.22LR & .22MAG

Specifications

Power Requirements

120V/15A or 230V/50HZ single phase

Footprint

48"L x 36"W x 84"H

Suggested Working Area

10'L x 10'W x 12'H
